Parameters ECG

ECG Lead Mode 12 lead

Display 8"

Suitable for Neonatal, Pediatric, Adult

NIBP Mode Manual

ECG Waveform 5 Channels

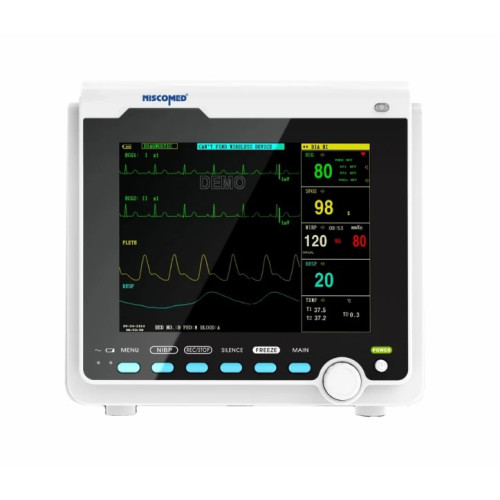

A light weight, compact and portable Multi Parameter Patient Monitor (8.4") (3 Para/5 Para) features high resolution color TFT display and is suitable for Arrhythmia analysis and S-T segment analysis in neonatal, paediatric and adult patients. Further, this features 72 hours graphic and tabular trends of all parameters on the touch screen monitor with great level of accuracy.

NIBP:

Method Oscillometry

Modes Manual / Auto / Continuous

Auto Measure time Adjustable

Measurement range 10-270mmHg

ECG:

Lead Mode 3-Iead Or 5-lead

Lead Selection I, II, III, avR, avL, avF, v

Heart rate range Adult: 15-300bpm, pediatric /

Neonatal 15-300bpm

ECG waveform 2 channels

Accuracy ±1 bpm or±1 %, Whichever is greater

S-T segment detection: Measurement range 0.2mv~2.0mv

Specifications:

Alarm Yes, audible and visual alarm, alarm events review

High resolution 12.1” or 8.4” color TFT display

Lightweight, compact and portable

ECG, SPO2, NIBP, RESP, 2-TEMP, PR

Built-in rechargeable lithium battery

ECG waveforms of 7-leads display on the same screen

+72-hours graphic and tabular trends of all parameters

72 alarm events of all parameters recall

32 seconds full-disclosure waveform review

500 NIBP measurement data can be stored and recall

Data and waveforms color can be adjustable

Arithmetic analysis and S-T segment analysis

Suitable for adult, pediatric and neonatal patient

SPO2:

Measurement range 0-100%

Accuracy 70-100%, ±2% 0-69%, unspecified

Pulse Rate:

Range 20-254 pm

Accuracy ±3bpm

Respiration:

Method RA-LL impedance

Range Adult: 0-120 rpm;pediatric/neonatal: 0-15 rpm

Apnea alarm yes

Temperature:

Range 0-50 °C

Accuracy ±0.1 °C

Channel Dual - channel

Optional:

Nellcor SPO2, ETCO2, IBP, Printer Networking

Request

Callback

Additional Information:

Item Code: FPO-160
