Minimum Order Quantity 1 Unit

Parameters SpO2

Usage/Application Hospital

Warm Up Time 1 min

Brand Nellcor

Charging Time 12 hrs

Operating Temperature 5 - 40 degree C

Model Number N-595

Weight 5.7 lb

Operating Humidity 15% to 95% non condensing

Operating Altitude -1,280 ft to 12,000 ft

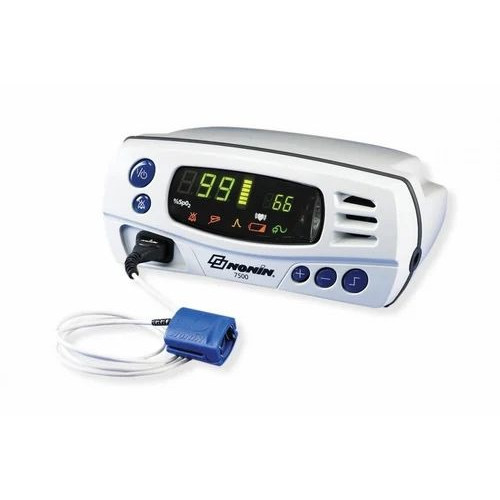

We are a well-recognized name that is affianced in offering our valuable clients an effective quality Automatic Pulse Oximeter. The offered monitor passes two wavelengths of light through the body part to a photo detector. Our provided monitor does not require a thin section of the person's body and is therefore well suited to more universal application such as the feet, forehead and chest, but it also has some limitations.

Features:

Easy to operate

Less power consumption

Long service life

Specifications:

Size:

IEC 60601-1

CSA 601.1

UL 2601-1 (2nd ed)

IPX1

EN865

EN/IEC 60601 - 1 - 2

Emissions compliance: EN 55011, Group 1, Class B

Output:

EIA-232 and RS-422 digital output from serial part

Oxinet communications output protocol

Nurse call capacity

Analog output (0-1V); SpO2, pulse rate and plethsymographic waveform

Optional accessories:

GCX mounting brackets

Interface cables

Display/indicators:

High quality LCD graphical screen plethysmographic waveform or magnified view (“big numbers” with pulse amplitude indicator)

Visual indicators: Pulse search, audible alarms silenced or off, artefact indicator, low battery and battery charging, sensor off, sensor disconnect and sat second’s clock.

Alarms:

Audible and visual alarms for high/low saturation and pulse rate

Sat second’s alarm management

Settings: 10, 25, 50 and 100 or OFF

Audible and visual warning indicators for low battery

Audible sensor disconnect alarm

Displayed saturation and pulse rate alarm limits

Accuracy:

Saturation (% SpO2: ± 1SD): without motion: Adult 70% to 100% ± 2 digits

Neonates 70% to 100% ± 3 digits

With motion: Adult & neonates 70% to 100% ± 3 digits

Low perfusion: 70% to 100% ± 2 digits

Measurement range:

Pulse rate: without motion: 20 to 250 bpm ± 3 digits

With motion: Normal physiologic range (e.g., 55 to 125 bpm) ± 5 digits

Low perfusion: 20 to 250 bpm ± 3 digits
