Product Specification

Brand Allengers

Frequency Response 0.05 to 150 Hz

Sampling Rate 4500 samples / sec

ADC 16 Bit

Rejection Ratio (CMRR) >100 db

Patient Leakage <10 micro Amp

Input Impedance >100 M Ohms

Display Sensitivities 2.5,5,10,20,40,80 mm/mV

Display Sweep Speed 5,12.5,25,50,100 mm / sec

Operating System Any Microsoft Windows based

Treadmill Speed 0.8 to 16 Kmph (can be increased upto 20 Kmph)

Treadmill Grade 0 to 22% (can be increased upto 25%)

Treadmill Walking Area 1500 mm x 500 mm

Treadmill Dimension 2000 mm x 700 mm

Treadmill Max. Load Upto 200 Kg

Treadmill Net Weight 150 Kg (approximately)

Treadmill Control Optically/Digitally isolated USB

Series Gemini

Product Description

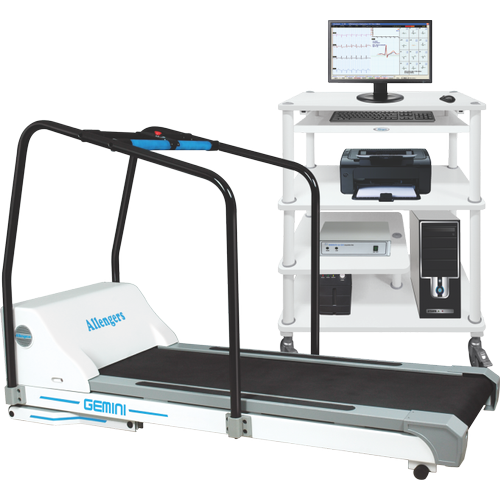

Allengers’ Gemini Series of stress test systems are designed using state-of-the-art technology and more than 30 years of experience in design and manufacturing of medical equipment. Sturdy, in-house designed treadmill and stable base line during stress test are highlights of Allengers’ TMT.

Special Features:

Dual working of Acquisition box - Stress ECG & Resting ECG.

User friendly software with-Editable protocols, Online/PDF printing, RR analysis, PVC detection, online Arrhythmia and many more options.

Free Lifetime Online Support & S/W up gradation.

Optional – Automatic NIBP measurement in AM model.

Unlimited no of Protocols (Standard and User Defined).

Online update allows user to download the latest software from Allengers server.

USB interface which enables the equipment to be used with any desktop/laptop computer.

Strong analysis tools with different display types formats.

Properly isolated Acquisition box with De-Fib Protection.

“Emergency stop” button is provided to stop treadmill motion in case of emergency.

Digitally signed driver with lots of user editable or defined settings.

Wireless Acquisition: - Light-weight with small body level acquisition removes the artifacts due to patient motion using small lead lengths.
