DESCRIPTION:

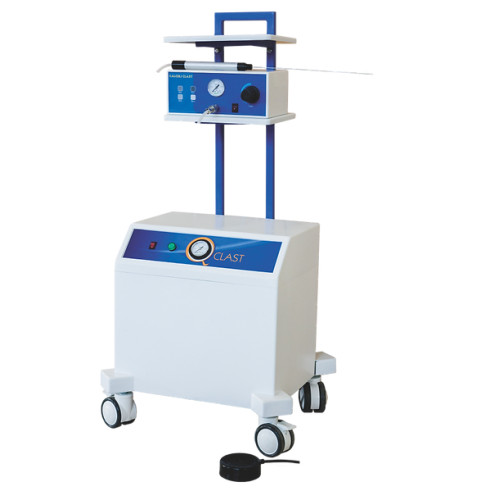

Q-Clast is a complete ureteric stone fragmentation system mounted on the ergonomically designed trolley.

Q-Clast consists of two major parts:

Calculiclast : SME’s pneumatic lithotripter.

Air compressor unit for the air supply to calculiclast.

Q-Clast is the stand-alone pneumatic lithotripsy system. User will not need any external air supply such as centralized oxygen or air compressor.

Workstation trolley has the proper platforms to keep Calculiclast control Unit as well as other related endoscopic devices.

Technical Specifications:

Power Supply	230VAC, 50Hz
Working Pressure	1.8 to 4 Kg/Cm2K
Maximum input pressure	6 Kg/Cm2
Pressure source	Pressurised oxygen/Compressed air

Workstation Trolley Power Supply

Power Supply	230VAC, 50Hz, 5Amp socket, 2.5Amp Starting current, 1.5Amp running current (Compressor on)
Dimension (H x L x W)	770 x 400 x 430mm
Weight	30Kg

Calculiclast Control Unit:

Dimension (Dia x length)	24x180mm
Weight	150 gms
