Product Specification

Usage Hospital

Brand Heinemann

Voltage 220V

Frequency 50Hz

Model Name Paris

Current Consumption 10Amp

power consumption 2 and 3kV

Classification IIa

Ce-Sign MedCerT 0482

Protection Class I

Product Description

Products Description:

Fully Equipped Yet Space Saving:

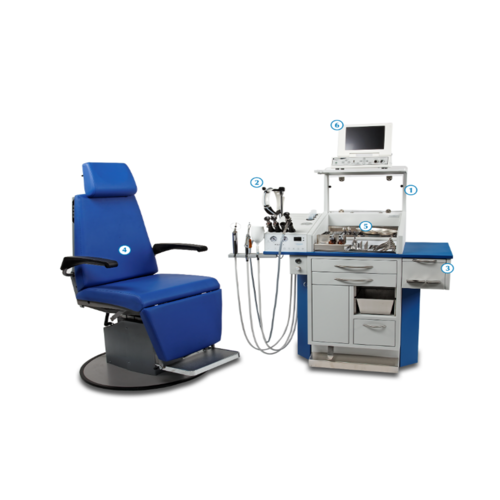

Modula Paris : All Functions Available in a Compact Unit. If You Only Have Limited Space Available or You Need a Second, Small Unit With Specific Functions, This Is the Right Treatment Unit for You. The Unit Is Particularly Made for Small to Medium-sized Examination Rooms to Assure Efficient Diagnosis and Highest Comfort Treatment. Despite Its Compact Size, the Modula Paris Offers Plenty of Space for Instruments and Devices.

Customisation:

Modula Paris Our Medium Sized Unit for Limited Space. The Modula Paris Ent Treatment Unit Offers the Full Range of Features, Such as Automatic or Manual Suction Systems, Up to 4 Led Cold Light Sources, Compressed Air System. Modula Paris Can Be Equipped With Up to Three Instrument Levels. A Mobile Instrument Cabinet Is Also Available in the Same Design or According to Any Individual Requirement.

Features:

Upper shelf above the instrument level as an extended storage space for additional equipment or instruments

Headlight holder, switches on/off automatically, height-adjustable and swiveling for cold light headlights

Cotton wool and tongue swab dispenser (attached on right side of unit)

Patient chair MODULA

SA with electric height adjustment and synchronous adjustment of the leg rest and back rest5Various ENT instruments

Endoscopy camera system XE-50-TFT/USB

Equipment:

Standard

High quality electrolytic zincplated steel cabinet

Stoved enamel powder coating in 19 colours

Mobile unit with stainless steel base, antistatic heavy-duty castors

Electronic operating and display system: robust, user-friendly glass control panel with touch-sensitive function keys

Instrument holder for irrigation, compressed air and suction handles

Integrated rapid mirror warmer, with fan

max. 3 drawers, fully extending with soft close system

3 disinfection quivers for rigid endoscopes with protective silicone adapter

2 instrument levels with stainless steel instrument trays

Indirect illumination for instrument levels

Acrylic glass instrument cover, sinkable behind the cabinet

Stainless steel instrument tray for used instruments with silicone insert

Waste bin, opening with foot pedal (self-closing)

Optional

Headlight holder, switches on/off automatically, height-adjustable and swiveling

Upper shelf above instrument level with powder-coated aluminum shelf

Holder for TFT-monitor

Heatable instrument storage surface and/or mirror warming block for approx. 50 mirrors

Powered suction system with manual or automatic suction bottle emptying: vacuum pump (oil-free, capacity 40 l/min at -0.85 bar), vibration-free bracket for vacuum pump, automatic activation when suction tube is picked up

C ear irrigation system with continuous flow heating or water tank: irrigation handle with exchangeable cannulas attachments incl. antibacterial hose with quick connector

Compressed air system with compressor (oil-free, 12 l/min, max. 2.5 bar), chrome plated handle with antibacterial hose and quick-connector incl. 3 medicament sprayer and stainless steel holder for spray bottles

Cold light system: max. 4 integrated light sources halogen (150 VA) or LED

Endoscope storage: max. 4 pre-heated endoscope quivers for rigid endoscopes with adjustable temperature

Ambient Temperature:+15 Degree C to +35 Degree C
